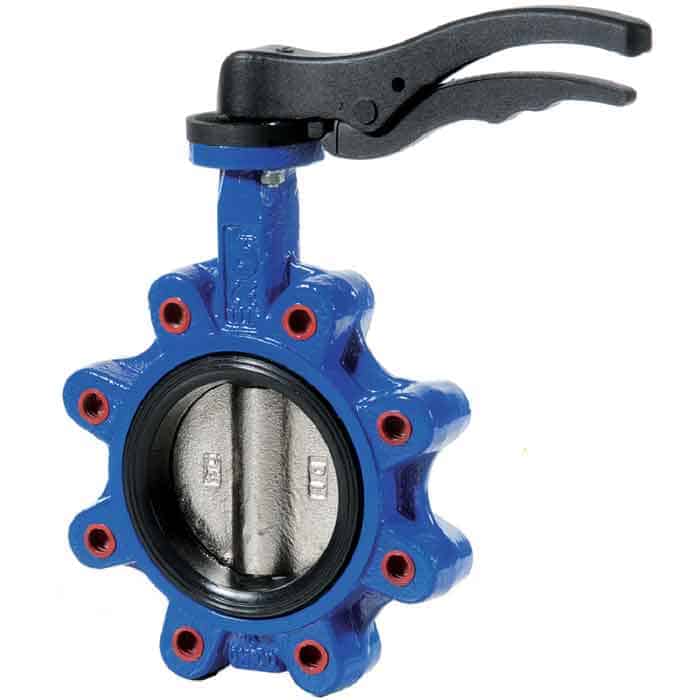

JV100002 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – WRAS Approved

JV100002 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose lugged and tapped butterfly valve with an EPDM liner. Manually operated, supplied with a lockable lever or gearbox.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Lugged & Tapped
Size & Connections
DN25 to DN600 • PN16 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
25-300mm PN16 • 350-600mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (L9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting

WRAS Approved ProductISO5211 Pad Mount

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, Other – Please specify in message
