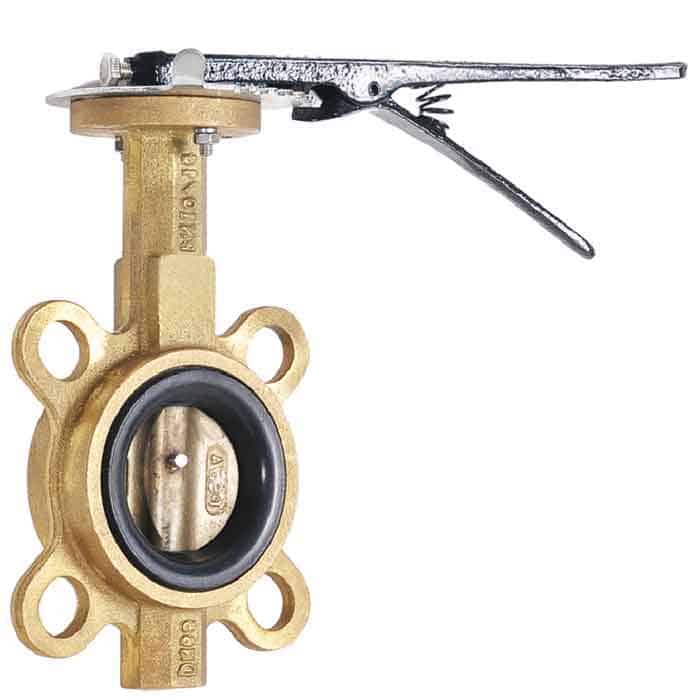

JV100006 – Aluminium Bronze Wafer Butterfly Valve, NBR Lined

JV100006 – Aluminium Bronze Wafer Butterfly Valve, NBR Lined

A butterfly valve with an ali-bronze body and disc and NBR liner suitable for a wide variety of isolation duties particularly marine applications. Manually operated, supplied with a lockable lever or gearbox.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN50 to D300 • Wafer – Between BS4504 PN6/10/16 & ANSI150 Flanges
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Aluminium Bronze Body & Disc • NBR Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
DNV-GL & BV Type Approval • Length to EN558-1 Series 20 • ISO 5211 Top Mounting

ISO5211 Pad Mount

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
