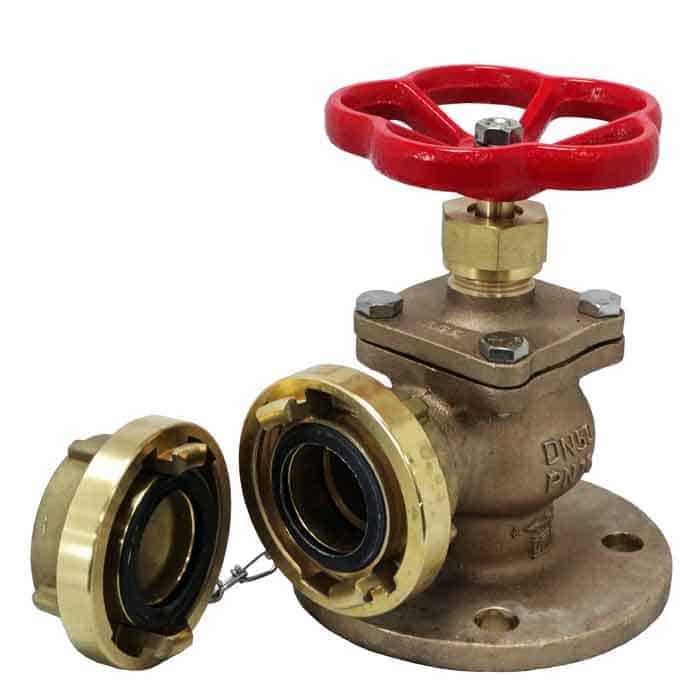

JV120006 – Marine Bronze Angled Fire Hydrant Landing Globe Valve – Storz

JV120006 – Marine Bronze Angled Fire Hydrant Landing Globe Valve – Storz

This angled pattern fire hydrant valve with bolted bonnet is suitable for both offshore and onshore applications. Constructed with a dual seat design, the primary valve seat is hard rubber with an additional secondary metal to metal seat.

Product Options
Clear
Add to quote
SKU: N/A Categories: , ,

Description

Type
Dual Seat Globe • Bolted Bonnet • Angled Pattern
Inlet Size & Connections
DN40 to DN65 • PN16 Flange (others on request)
Outlet Size & Connection
Storz 38 • Storz C-52 • Storz 65 • Storz B75 (others on request)
Materials
Bronze Body • Brass Bonnet, Stem & Secondary Seat • Rubber Primary Seat
Pressure Rating
15 Bar
Temperature
0°C to 80°C
Compliance & Approvals
DIN 86211 • Lloyds (LRS) Approved • 3.1 Material Certs (available on request)

Lloyds Register Approved

Additional information

DN Valve

40, 50, 65, Other – Please specify in message
DN Adaptor

Storz 38, Storz C-52, Storz 65, Storz B-75, Other – Please specify in message
