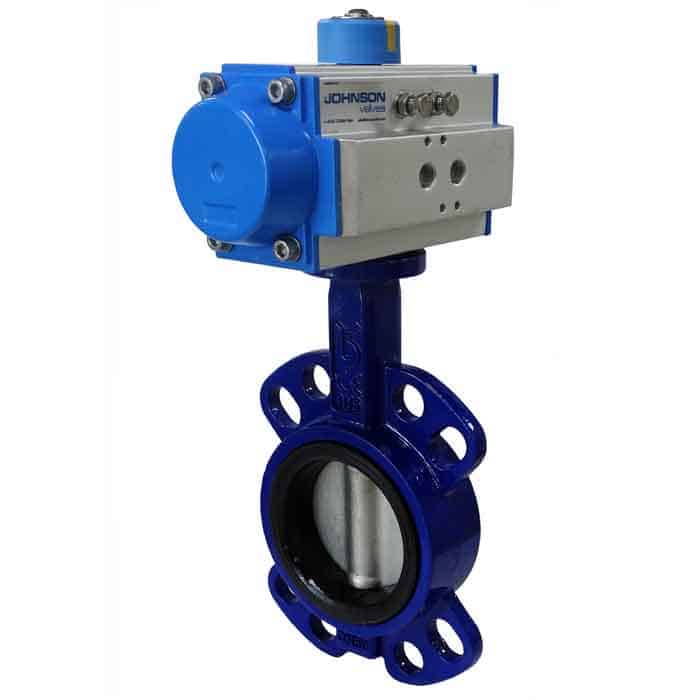

JV240002 – Pneumatically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved

JV240002 – Pneumatically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with a VT Pneumatic Actuator .

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Cast/Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
25-250mm PN16 • 300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/J9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate

WRAS Approved Product

Additional information

Variant

DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
