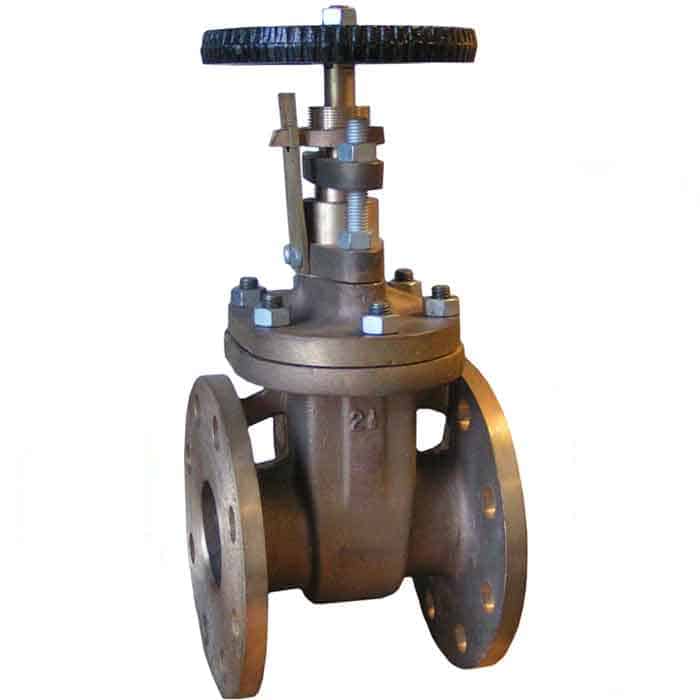

IW2 – Bronze Marine Gate Valve

IW2 – Bronze Marine Gate Valve

Marine quality gate valve with an open & shut indicator. Lloyds, B.V., DNV, Germanischer Lloyds Inspection and 3.1 material certification can be arranged on request.

Product Options
Clear
Add to quote
SKU: N/A Categories: , ,

Description

Type
Wedge • Inside Screw & Non-Rising Stem
Size & Connections
DN15 to DN350 • 15-150mm: PN16 • 200-350mm: PN10 Flange (others on request)
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body & Bonnet • Manganese Bronze Stem • Bronze Disc
Pressure Rating
15-200mm: PN16 Rated • 250-350mm: PN10 Rated
Temperature
Up to 180°C (dependent on pressure & size)
Compliance & Approvals
BS 5154 & BSMA 65 Part 9 • 3.1 & 3.2 Material Certification (available on request)

3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, Other – Please specify in message
