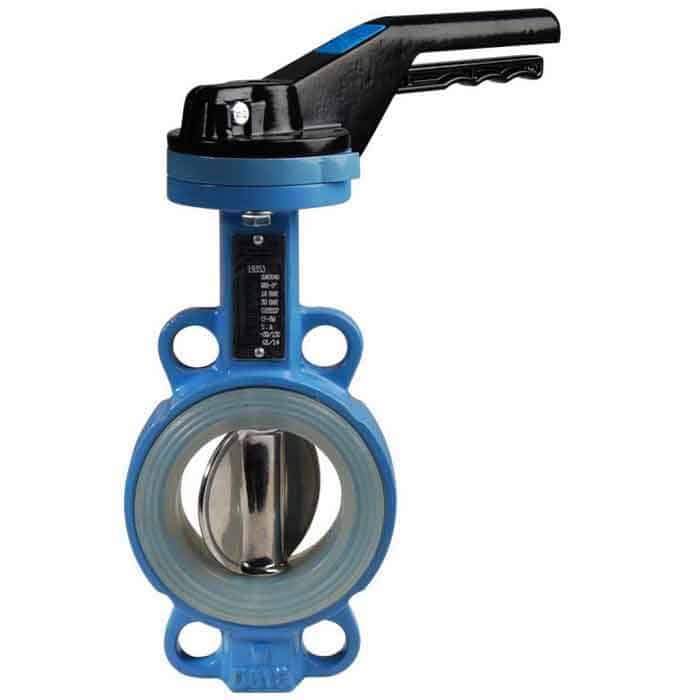

JV100032 – Ductile Iron Wafer Butterfly Valve, Silicone Lined for Food Duty

JV100032 – Ductile Iron Wafer Butterfly Valve, Silicone Lined for Food Duty

Silicone lined butterfly valve to FDA requirements with a stainless steel disc and a cast iron body, suitable for food and drink duties. Manually operated, supplied with a lockable lever.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN10/16 & ANSI150 Flanges
Duty
Water • Food • Drink
Materials
Ductile Iron Body • Stainless Steel Disc • Silicone Liner
Pressure Rating
PN16
Temperature
-40°C to 150°C
Compliance & Approvals
EN558-1 Series 13 • ISO 5211 Top Mounting • FDA Silicone Lined • BV Type Approval

ISO5211 Pad Mount

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
