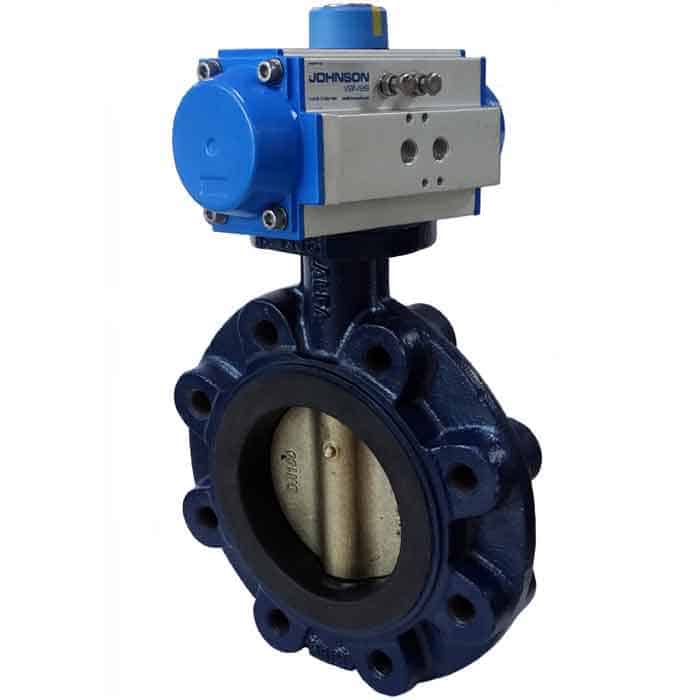

JV240027 – Pneumatically Actuated Marine Quality Lugged Butterfly Valve

JV240027 – Pneumatically Actuated Marine Quality Lugged Butterfly Valve

A lugged pattern butterfly valve with a ductile iron body, stainless steel or aluminum bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator .

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Lugged & Tapped • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN1200 • PN6/10/16/25, ANSI150 & JIS 5/10K Flange*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring

3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
